Bright annealing furnace is a metal heat treatment process that refers to heating the metal slowly to temperature, holding it for a sufficient period of time, and then cooling it at a suitable rate with the aim of reducing the hardness.
Products
Hooded Bright Heat Treatment Furnace & Ovens
Achieving Pristine Surface Finishes Through Non-Oxidizing Annealing
Product Introduction
Our Hooded Bright Heat Treatment Furnaces and Ovens are specifically designed for processes requiring a pristine, non-oxidized surface finish on metal components. These furnaces utilize a protective atmosphere, typically hydrogen or inert gases, to prevent oxidation and discoloration during the annealing or heat treatment process. The unique hooded design allows for efficient loading and unloading while maintaining a controlled environment, making them ideal for treating sensitive materials like stainless steel, copper, and other alloys where surface quality is paramount. With precise temperature control, advanced atmosphere management, and robust construction, our hooded bright heat treatment furnaces deliver superior metallurgical results and exceptional surface aesthetics, reducing the need for post-treatment cleaning or polishing.
Key Advantages of Our Hooded Bright Heat Treatment Furnaces & Ovens
- Pristine Surface Finish: Achieves bright, non-oxidized surfaces, eliminating the need for costly post-treatment cleaning or pickling.
- Precise Atmosphere Control: Maintains a highly controlled protective atmosphere (e.g., hydrogen, nitrogen) to prevent oxidation and decarburization.
- Uniform Temperature Distribution: Ensures consistent heating throughout the load for uniform metallurgical properties and reduced distortion.
- Versatile Applications: Ideal for bright annealing of stainless steel, copper, brass, and other non-ferrous alloys, as well as magnetic materials and precision components.
- Energy Efficiency: Optimized insulation and heating elements minimize energy consumption, reducing operational costs.
- Robust & Durable Construction: Built with high-quality materials for long operational life and minimal maintenance in demanding industrial environments.
- Efficient Loading/Unloading: Hooded design allows for easy and efficient loading and unloading of large or heavy batches.
- Enhanced Material Properties: Improves ductility, reduces internal stresses, and refines grain structure without compromising surface integrity.
Technical Specifications
| Parameter | Unit | Range/Value | Notes |
|---|---|---|---|
| Maximum Operating Temperature | °C | Up to 1150 (depending on model and application) | Customizable for specific annealing requirements |
| Protective Atmosphere | - | Hydrogen, Nitrogen, Argon, Dissociated Ammonia | Ensures bright, non-oxidized surface finish |
| Atmosphere Purity | ppm | < 50 (Oxygen) | Critical for preventing oxidation |
| Temperature Uniformity | °C | ±3 to ±5 (typical) | Ensures consistent metallurgical results |
| Working Dimensions | mm | Customizable | Tailored to workpiece size and production volume |
| Heating Method | - | Electric Resistance, Gas-Fired | Selected based on energy efficiency and process needs |
| Control System | - | PLC-based with HMI, SCADA integration | Automated and programmable for precise process control |
Working Principle
Hooded bright heat treatment furnaces operate on the principle of annealing or heat treating metal components in a precisely controlled, non-oxidizing atmosphere. The furnace consists of a base, a heating hood that can be lowered over the charge, and a protective atmosphere system. Before heating, the chamber is typically purged with an inert gas (like nitrogen) to remove residual oxygen. Then, a protective atmosphere, often hydrogen or a mixture of hydrogen and nitrogen, is introduced. This atmosphere prevents the metal surface from reacting with oxygen at high temperatures, thus maintaining its bright and clean finish. The heating hood, equipped with heating elements, raises the temperature of the workpiece to the desired annealing temperature. After soaking, the hood is lifted, and the charge is allowed to cool slowly within the protective atmosphere, ensuring the material's metallurgical properties are enhanced without surface discoloration or oxidation. The process is critical for materials where surface aesthetics and integrity are as important as their mechanical properties.
Process Flow
Loading & Sealing
Components are loaded onto the furnace base, and the hooded chamber is sealed.
Purging & Atmosphere Introduction
The chamber is purged to remove oxygen, then filled with a protective atmosphere.
Heating & Soaking
The furnace heats the components to the annealing temperature and holds them for a specified time.
Controlled Cooling & Unloading
Components cool slowly within the protective atmosphere before being unloaded.
Solving Customer Pain Points
Surface Oxidation & Discoloration
Our furnaces utilize a precisely controlled protective atmosphere, completely preventing oxidation and maintaining the original bright surface finish of components, eliminating the need for post-treatment cleaning.
Inconsistent Material Properties
Advanced temperature uniformity and atmosphere circulation ensure consistent heating and cooling throughout the load, leading to uniform metallurgical properties and reduced internal stresses.
High Post-Processing Costs
By delivering a bright, clean finish directly from the furnace, our systems eliminate the need for costly and time-consuming post-treatment processes like pickling, grinding, or polishing.
Atmosphere Leakage & Gas Consumption
Our robust sealing mechanisms and efficient gas management systems minimize atmosphere leakage, reducing gas consumption and ensuring a stable, cost-effective protective environment.
Limited Batch Size & Loading Difficulty
The hooded design allows for easy loading and unloading of large or heavy batches, maximizing throughput and operational flexibility for various production scales.
Environmental Concerns from Chemical Cleaning
By preventing oxidation, our furnaces reduce reliance on chemical cleaning processes, offering a more environmentally friendly and safer heat treatment solution.
Customer Success Story
A leading manufacturer of precision stainless steel tubes integrated our hooded bright heat treatment furnace into their production line. They reported a 40% reduction in post-annealing cleaning costs and a significant improvement in product quality due to the consistently bright and smooth surface finish. The furnace's efficient atmosphere control also led to substantial savings in gas consumption.
Customization & Support
We offer extensive customization options for furnace size, atmosphere type, and control features to perfectly match your specific bright heat treatment requirements. Our expert team provides comprehensive support from initial design and installation to operator training and ongoing maintenance, ensuring optimal performance and longevity of your hooded bright heat treatment furnace.
Related Keywords
hooded bright heat treatment furnace, bright annealing, non-oxidizing heat treatment, bell type furnace, protective atmosphere furnace, metal annealing, stainless steel annealing, copper annealing, hydrogen atmosphere furnace, inert gas annealing, clean surface heat treatment
Hooded bright heat treatment furnace & Ovens Working Principle
The hooded furnace's gas dynamics system employs hydrogen-nitrogen mixtures to create reducing atmospheres, where hydrogen acts as a decarburization inhibitor while nitrogen provides inert gas shielding. This dual-gas mechanism achieves surface brightness by suppressing iron oxide formation at critical temperature ranges (600-1100°C).
Process Flow Innovation
Pre-Purge Phase: 3-5 atmosphere replacements remove residual oxygen (<50ppm) before heating
Dynamic Heating: Multi-zone silicon carbide heating elements enable ±5°C gradient control
Post-Cooling Integrity: Proprietary gas quenching nozzles maintain metallurgical uniformity during cooling
Industrial Value Chain Integration
This technology revolutionizes traditional workflows by:
Eliminating 80% of post-treatment acid washing steps in medical implant production
Reducing energy consumption by 40% compared to vacuum oven alternatives
Enabling direct compliance with ASTM F86 surface cleanliness standards
Cross-Industry Applications
SectorTypical ComponentsBenefitAerospaceTurbine blade retainers15% weight reduction via optimized grain structureAutomotiveEV battery busbars30% conductivity improvementBiomedicalOrthopedic screwsEliminates post-sterilization corrosion
Brief introduction
Bright annealing furnace is a metal heat treatment process, which refers to heating the metal slowly to temperature, holding it for a sufficient period of time, and then cooling it at a suitable rate. The purpose is to reduce the hardness, improve the cutting and machinability; eliminate residual stress, stabilize the size, reduce the deformation and cracking tendency; refine the grain, adjust the organization, eliminate organizational defects.
The purpose of annealing is to make the casting, forging, welding or cutting materials or workpieces soften, improve the plasticity and toughness, so that the chemical composition of the uniformity, the removal of residual stress, or to get the expected physical properties.
Annealing process with the purpose of a variety of different and, such as recrystallization annealing, isothermal annealing, uniform annealing, spheroidal annealing, stress relief annealing, recrystallization annealing, as well as stabilized annealing, magnetic field annealing and so on.
The skeleton of annealing furnace is welded by all kinds of steel sections, the outer frame is made of channel steel as the main beam, the peripheral plate is made of cold thin plate, the cart is made of channel steel as the main beam, the bottom plate and the front and rear end plates are made of center plate.
Principle:

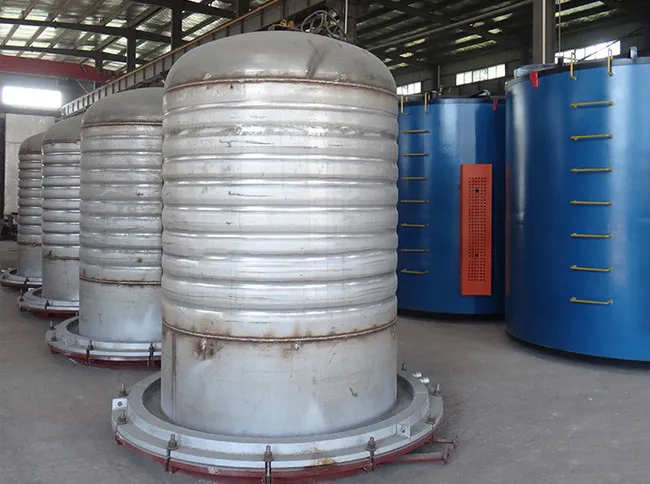

The material to be annealed is placed in the inner cover with protective atmosphere, and the temperature is raised and lowered by electric heating or gas or fuel oil to the material according to the specified process curve, so as to achieve the purpose of bright annealing. The furnace is currently advanced industrialized production of mainstream furnace.
Application:
Shroud type bright annealing furnace can be widely used for bright annealing of non-ferrous metals copper, aluminum alloy and ferrous metals, plain carbon steel, silicon steel, alloy steel and other coils and strips, coils and tubes, wires and other bright annealing.
Metallic materials are heated to the appropriate temperature, maintained for a period of time, and then slowly cooled heat treatment process. Common annealing processes are: recrystallization annealing, stress relief annealing, spheroidizing annealing, annealing and so on. The purpose of annealing: mainly to reduce the hardness of metal materials, improve plasticity, in order to facilitate cutting or pressure machining, reduce residual stress, improve the organization and composition of the homogenization, or for the latter heat treatment to make good preparation for the organization and so on.
This equipment can be widely used for bright annealing of non-ferrous metals such as copper, aluminum alloy and ferrous metals, plain carbon steel, silicon steel, alloy steel and other coils and strips, coils and tubes, wire rods and so on. Strong convection bell-type bright annealing furnace has the advantages of high production efficiency, good product quality, low energy consumption, automatic operation, reliability, etc. It is one of the contemporary advanced heat treatment equipment.
Bright annealing furnace is a kind of annealing furnace, its working principle is: the material to be annealed is placed in the built-in with protective atmosphere, and the material is heated electrically to raise and lower the temperature according to the specified process curve, so as to achieve the purpose of bright annealing. The furnace is currently advanced industrialized production of mainstream furnace.
The main features of bright annealing furnace:
1. The whole annealing process of the material is placed in a protective atmosphere, the surface of the annealed workpiece is bright and oxidation-free, the steel surface is not decarburized.
2. Due to the strong convection circulation of the protective gas in the furnace, the furnace temperature is uniform, so that the temperature difference between the materials in the furnace within ± 5 ℃; can effectively ensure that any position of the annealed material is soft and hard consistent, to facilitate deep processing of materials.
3. Adopting the quasi-continuous operation mode of heating and cooling with double furnace seats, the furnace structure is scientific and reasonable, the energy-saving effect is obvious, and the energy consumption per ton of steel is low; the single furnace capacity is up to 30 tons, and the production efficiency is high.
4. The surface of the material treated by this type of furnace is bright, eliminating the acid washing process, clean working environment, and eliminating acid pollution.
5. The whole set of equipment is controlled by microcomputer, with high degree of automation, which can effectively guarantee the product quality and equipment operation.
Scope of application of bright annealing furnace:
1. Ferrous metal steel strip, steel wire, steel pipe parts intermediate and finished bright annealing.
2. Non-ferrous metal copper belt, copper wire, copper pipe, copper bar intermediate and finished bright annealing.
3. Bright annealing of standard parts, chains, mechanical parts and other bulk parts.
