Car Bottom Furnaces for Annealing
Optimized Solutions for Material Softening
Product Introduction
Our Car Bottom Furnaces for Annealing are robust, high-capacity heat treatment systems designed for the precise and uniform annealing of large, heavy, or irregularly shaped components. Annealing is a critical heat treatment process used to soften materials, improve ductility, relieve internal stresses, and refine grain structure, making them more workable and less brittle. These furnaces feature a movable hearth (or 'car') that can be loaded outside the furnace and then rolled into the heating chamber, significantly simplifying the handling of substantial workloads. This design minimizes heat loss during loading and unloading and ensures consistent temperature distribution throughout the annealing cycle. Ideal for industries processing large castings, forgings, or fabricated structures, our car bottom annealing furnaces provide exceptional temperature uniformity and controlled cooling, ensuring optimal material properties for subsequent processing or end-use applications.
Key Advantages of Our Car Bottom Furnaces for Annealing
- High Load Capacity: Designed to accommodate very large and heavy components, making them ideal for industrial-scale annealing operations.
- Efficient Material Handling: The movable car bottom simplifies loading and unloading, reducing labor and improving operational efficiency.
- Precise Temperature Control: Advanced heating systems and controls ensure excellent temperature uniformity throughout the annealing cycle.
- Optimal Material Softening: Effectively reduces hardness, improves ductility, and enhances machinability of treated materials.
- Stress Relief: Relieves internal stresses induced by prior manufacturing processes, preventing distortion and cracking.
- Versatile Application: Suitable for annealing a wide range of metals and alloys, including steel, aluminum, and specialized alloys.
- Robust & Durable Construction: Built with heavy-duty materials for long operational life and minimal maintenance, even under demanding conditions.
- Energy Efficiency: Optimized insulation and sealing minimize heat loss, contributing to lower operating costs for large-scale heat treatment.
Technical Specifications
| Parameter | Unit | Range/Value | Notes |
|---|---|---|---|
| Maximum Operating Temperature | °C | Up to 1200 | Customizable for specific applications |
| Working Dimensions (Width × Height × Length) | mm | Customizable | Designed to customer specifications for various part sizes |
| Protective Atmosphere | - | Air, Nitrogen, Argon, Endothermic Gas | Selected based on material and process requirements |
| Temperature Uniformity | °C | ±5 (typical) | Ensures consistent heat treatment results |
| Heating Method | - | Electric Resistance, Gas-fired | Configurable based on energy source and preference |
| Cooling Method | - | Controlled Air Cooling, Furnace Cooling | Selected based on desired material properties |
| Load Capacity | kg | Up to 100,000+ | Designed for heavy and large components |
Working Principle
Car bottom furnaces for annealing operate by heating large and heavy components to a specific temperature, holding them at that temperature for a set period, and then slowly cooling them to achieve desired metallurgical properties. The process begins with loading the workpiece onto a movable car (hearth) outside the furnace. Once loaded, the car is rolled into the heating chamber, which is then sealed. The furnace heats the components to the desired annealing temperature, typically above the recrystallization temperature but below the melting point. After the soaking period, the furnace slowly cools the material, often by controlled furnace cooling or slow air cooling, to allow for grain growth, stress relief, and the transformation of the microstructure to a softer, more ductile state. The car bottom design facilitates easy handling of massive loads and ensures uniform heating and cooling throughout the entire cycle, which is crucial for achieving consistent annealing results in large components.
Process Flow
Material Loading
Workpiece is loaded onto the movable car outside the furnace.
Heating & Soaking
Car is rolled into the furnace, and material is heated to target annealing temperature and held for a specified time.
Controlled Cooling
Material is slowly cooled inside the furnace or by controlled air cooling.
Unloading
Annealed material is removed from the car for further processing or inspection.
Solving Customer Pain Points
High Hardness & Brittleness
Our annealing furnaces effectively reduce material hardness and brittleness, improving ductility and machinability for subsequent operations.
Internal Stresses & Distortion
The controlled heating and slow cooling cycles relieve internal stresses, preventing unwanted distortion and cracking in large components.
Handling Large & Heavy Components
The car bottom design simplifies the loading and unloading of massive parts, improving operational efficiency and safety for large-scale annealing.
Inconsistent Microstructure
Superior temperature uniformity and precise control over cooling rates ensure a consistent and refined grain structure throughout the entire load.
Energy Consumption for Long Cycles
Optimized insulation and sealing minimize heat loss, ensuring energy-efficient operation and reduced costs for extended annealing cycles.
Complex Operation & Maintenance
Our user-friendly controls and accessible car design simplify operation and maintenance, reducing downtime and improving productivity.
Customer Success Story

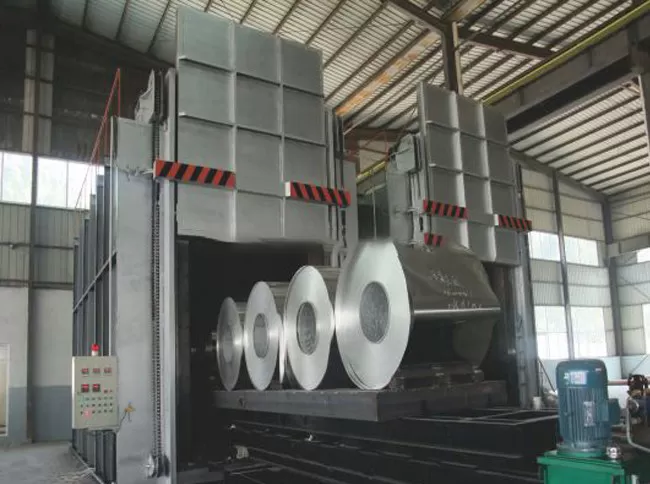

A major steel mill utilized our Car Bottom Annealing Furnace to process large steel coils. They reported a significant improvement in the workability of the steel, leading to reduced tool wear during subsequent forming operations and an overall increase in production efficiency.
Customization & Support
We offer extensive customization options for working dimensions, temperature range, and atmosphere type to perfectly match your specific annealing requirements for large components. Our expert team provides comprehensive support from design and installation to training and after-sales service, ensuring seamless integration and optimal performance.
