Car Bottom Furnaces for Tempering
Precision Heat Treatment for Large Components
Product Introduction

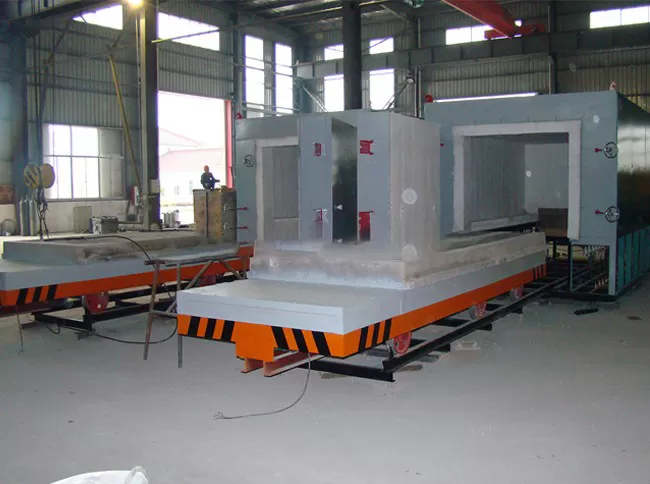

Our Car Bottom Furnaces for Tempering are engineered to provide precise and uniform heat treatment for large, heavy, or irregularly shaped components after hardening. Tempering is a critical secondary heat treatment process that reduces the brittleness of hardened materials, relieves internal stresses, and improves ductility and toughness. These furnaces feature a robust movable hearth (or 'car') that facilitates easy loading and unloading of substantial workloads, minimizing thermal shock and ensuring consistent temperature distribution throughout the tempering cycle. Ideal for industries processing large castings, forgings, or fabricated structures, our car bottom tempering furnaces offer exceptional temperature control and uniformity, crucial for achieving the desired mechanical properties and structural integrity of the treated parts.
Key Advantages of Our Car Bottom Furnaces for Tempering
- Superior Temperature Uniformity: Advanced heating and control systems ensure precise and consistent temperature distribution, vital for effective tempering.
- High Load Capacity: Designed to handle very large and heavy components, making them suitable for industrial-scale operations.
- Efficient Material Handling: The movable car bottom simplifies loading and unloading, reducing labor and improving operational efficiency.
- Stress Relief & Ductility Improvement: Effectively reduces internal stresses and enhances the ductility and toughness of hardened materials.
- Versatile Application: Suitable for tempering a wide range of metals and alloys, including steel, aluminum, and specialized alloys.
- Robust & Durable Construction: Built with heavy-duty materials for long operational life and minimal maintenance, even under demanding conditions.
- Energy Efficiency: Optimized insulation and sealing minimize heat loss, contributing to lower operating costs for large-scale heat treatment.
Technical Specifications
| Parameter | Unit | Range/Value | Notes |
|---|---|---|---|
| Maximum Operating Temperature | °C | Up to 750 | Customizable for specific applications |
| Working Dimensions (Width × Height × Length) | mm | Customizable | Designed to customer specifications for various part sizes |
| Protective Atmosphere | - | Air, Nitrogen, Argon | Selected based on material and process requirements |
| Temperature Uniformity | °C | ±3 (typical) | Ensures consistent heat treatment results |
| Heating Method | - | Electric Resistance, Gas-fired | Configurable based on energy source and preference |
| Load Capacity | kg | Up to 100,000+ | Designed for heavy and large components |
Working Principle
Car bottom furnaces for tempering operate by reheating hardened steel or other alloys to a specific temperature below the critical point, holding it at that temperature for a set period, and then cooling it, typically in air. The process begins with loading the pre-hardened workpiece onto the movable car outside the furnace. The car is then rolled into the heating chamber, which is sealed. The furnace gradually heats the components to the precise tempering temperature, allowing for the transformation of brittle martensite into a tougher, more ductile microstructure. The uniform temperature distribution within the furnace is crucial to ensure consistent tempering throughout the large or heavy load. After the soaking period, the car can be rolled out, and the tempered material is typically air-cooled, though other cooling methods can be employed depending on the desired properties. This controlled reheating and cooling process reduces internal stresses, improves toughness, and adjusts the hardness to the required level for the final application.
Process Flow
Material Loading
Hardened workpiece is loaded onto the movable car outside the furnace.
Heating & Soaking
Car is rolled into the furnace, and material is heated to target tempering temperature and held for a specified time.
Controlled Cooling
After soaking, the material is typically air-cooled to room temperature.
Unloading
Tempered material is removed from the car for inspection or further processing.
Solving Customer Pain Points
Brittleness After Hardening
Our tempering furnaces precisely reduce brittleness and relieve internal stresses, enhancing the ductility and toughness of hardened components.
Inconsistent Mechanical Properties
Superior temperature uniformity ensures consistent tempering results across large and heavy loads, leading to predictable mechanical properties.
Handling Large & Heavy Components
The car bottom design simplifies the loading and unloading of massive parts, improving operational efficiency and safety for large-scale tempering.
High Energy Consumption
Optimized insulation and sealing minimize heat loss, ensuring energy-efficient operation and reduced costs for long tempering cycles.
Complex Operation & Maintenance
Our user-friendly controls and accessible car design simplify operation and maintenance, reducing downtime and improving productivity.
Limited Process Versatility
These furnaces are highly versatile, capable of tempering a wide range of materials and accommodating various tempering cycles to meet diverse application needs.
Customer Success Story
A leading manufacturer of heavy machinery components implemented our Car Bottom Tempering Furnace to improve the toughness of their large gears. They achieved a 30% reduction in component failures due to improved ductility and stress relief, demonstrating the furnace's effectiveness in critical applications.
Customization & Support
We offer extensive customization options for working dimensions, temperature range, and atmosphere type to perfectly match your specific tempering requirements for large components. Our expert team provides comprehensive support from design and installation to training and after-sales service, ensuring seamless integration and optimal performance.
