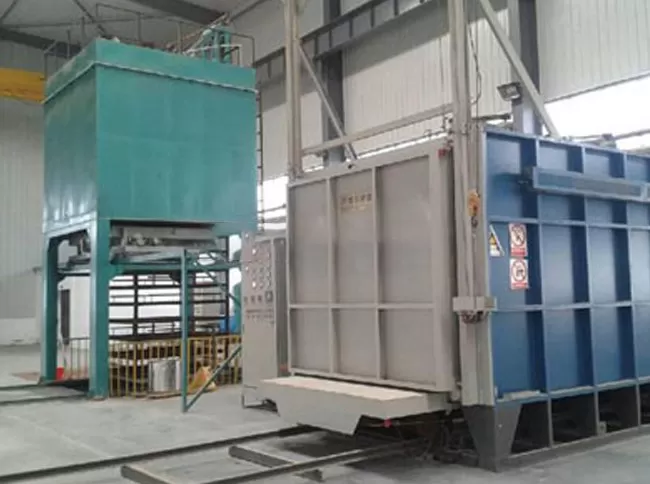

Car Bottom Furnaces for Quenching

Product Introduction

Our Car Bottom Furnaces for Quenching are heavy-duty, high-capacity heat treatment systems designed for the efficient and precise quenching of large, heavy, or irregularly shaped components. These furnaces feature a movable hearth (or 'car') that can be loaded outside the furnace and then rolled into the heating chamber, significantly simplifying the handling of substantial workloads. This design minimizes heat loss during loading and unloading and allows for rapid transfer to the quenching medium, which is crucial for achieving desired metallurgical properties. Ideal for industries processing large castings, forgings, or fabricated structures, our car bottom quenching furnaces provide exceptional temperature uniformity and controlled cooling, ensuring consistent hardness, strength, and microstructure across the entire load.

Technical Specifications

Working Principle

Car bottom furnaces for quenching operate by heating large and heavy components in a controlled environment, followed by rapid and controlled cooling to achieve desired metallurgical properties. The process begins with loading the workpiece onto a movable car (hearth) outside the furnace. Once loaded, the car is rolled into the heating chamber, which is then sealed. The furnace heats the components to the desired austenitizing temperature. After the soaking period, the car is quickly rolled out of the heating chamber, and the heated workpiece is rapidly transferred to a quenching medium (e.g., oil, water, or polymer) to achieve the desired hardness and microstructure. The rapid transfer minimizes heat loss and ensures effective quenching, especially critical for large components where heat retention can be an issue. After quenching, the material can be further processed, such as tempering, to achieve final properties. This design allows for efficient handling of massive loads and precise control over the heat treatment cycle.

Process Flow

Solving Customer Pain Points
