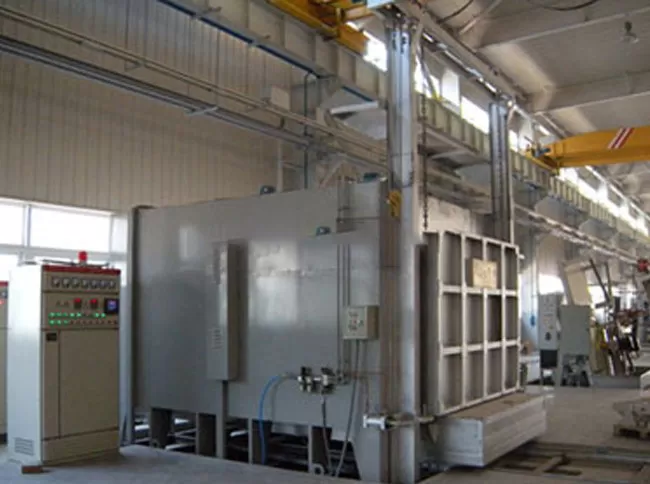

Box Furnaces for Quenching
Precision Heat Treatment for Enhanced Material Properties
Product Introduction
Our Box Furnaces for Quenching are meticulously engineered to deliver precise and rapid cooling for a wide range of industrial heat treatment applications. These robust and versatile furnaces are essential for processes requiring controlled quenching to achieve desired material hardness, strength, and microstructure. Designed for batch processing, they offer exceptional temperature uniformity and quench efficiency, making them ideal for hardening various metal components, tools, and dies. With advanced control systems and customizable configurations, our box quenching furnaces ensure consistent and repeatable results, meeting the stringent demands of modern manufacturing and metallurgical industries.
Key Advantages of Our Quenching Box Furnaces
- Uniform Temperature Distribution: Advanced heating elements and insulation ensure precise and even temperature across the entire chamber, critical for consistent quenching results.
- Efficient Quenching Capabilities: Designed for rapid and controlled cooling, our furnaces minimize distortion and maximize desired material properties.
- Robust Construction: Built with high-quality materials, these furnaces offer exceptional durability and longevity, even under demanding industrial conditions.
- Versatile Application: Suitable for a broad spectrum of materials and heat treatment processes, including hardening, annealing, and stress relieving.
- Advanced Control Systems: Equipped with intuitive PLC controls and HMI, allowing for precise programming of heating and quenching cycles, data logging, and remote monitoring.
- Enhanced Safety Features: Comprehensive safety interlocks and emergency shutdown mechanisms ensure operator safety and protect the equipment.
- Customizable Options: Available in various sizes and configurations to meet specific production requirements and integrate seamlessly into existing workflows.
Technical Specifications
| Parameter | Unit | Range/Value | Notes |
|---|---|---|---|
| Maximum Operating Temperature | °C | Up to 1200 | Customizable based on application |
| Chamber Dimensions (W×D×H) | mm | Customizable | Designed to customer specifications |
| Heating Elements | - | High-quality resistance wire/SiC | Ensures rapid and uniform heating |
| Temperature Uniformity | °C | ±5 (typical) | Achieved through multi-zone control |
| Quenching Medium | - | Oil, Water, Polymer, Air | Configurable to process requirements |
| Control System | - | PLC with Touchscreen HMI | Programmable, data logging, remote access |
| Rated Power | KW | Varies by size and configuration | Energy-efficient design |
| Door Type | - | Vertical Lift / Swing Out | Manual or automated options |
| Atmosphere Control | - | Optional (Protective Gas) | Prevents oxidation and decarburization |
Working Principle
Box furnaces for quenching operate on the principle of controlled heating followed by rapid cooling to modify the microstructure and mechanical properties of materials. The process begins by loading workpieces into the furnace chamber, which is then sealed. Heating elements raise the temperature inside the chamber to a precise set point, often within a protective atmosphere to prevent oxidation or decarburization. Once the material reaches the desired temperature and has soaked for a specified duration, it is rapidly transferred to a quenching medium. This rapid cooling, or quenching, locks in the high-temperature microstructure, preventing the formation of undesirable phases and enhancing properties such as hardness and strength. The choice of quenching medium (e.g., oil, water, polymer, or air) depends on the material type and the desired cooling rate. Advanced control systems precisely manage heating rates, soak times, and quenching parameters to ensure consistent and optimal metallurgical results.
Process Flow
Loading Workpieces
Workpieces are carefully loaded into the furnace chamber, ensuring proper spacing for uniform heating and quenching.
Heating Cycle
The furnace heats the workpieces to a precise temperature, often under a controlled atmosphere, to achieve the desired metallurgical state.
Rapid Quenching
Heated workpieces are quickly transferred to a quenching tank containing oil, water, polymer, or air for rapid cooling.
Unloading & Inspection
After quenching, workpieces are unloaded and inspected for desired hardness, microstructure, and dimensional integrity.
Solving Customer Pain Points
Inconsistent Hardness & Properties
Our precise temperature control and uniform heating ensure consistent material properties and hardness across all treated parts, eliminating variations.
Material Distortion & Cracking
Controlled and rapid quenching minimizes thermal shock, significantly reducing the risk of distortion and cracking in sensitive materials.
Slow Production Throughput
Efficient heating and rapid quenching cycles, combined with batch processing capabilities, optimize throughput and reduce overall production time.
Oxidation & Surface Contamination
Optional protective atmosphere control prevents oxidation and decarburization, ensuring clean, high-quality surfaces without additional post-processing.
Lack of Process Control & Data
Advanced PLC control systems provide comprehensive data logging, real-time monitoring, and recipe management for full process traceability and quality assurance.
High Maintenance & Downtime
Robust construction and accessible design reduce maintenance frequency and simplify servicing, leading to higher uptime and lower operational costs.
Customer Success Story
A leading automotive component manufacturer implemented our Box Furnace for Quenching and achieved a 15% increase in part hardness consistency and a 10% reduction in post-quenching rework, significantly improving their production efficiency and product quality.
Customization & Support
We offer extensive customization options for chamber size, heating capacity, and quenching systems to perfectly match your specific application needs. Our expert team provides comprehensive support from design and installation to training and after-sales service, ensuring seamless integration and optimal performance.
