Bell Type Furnaces For Annealing | Bright Annealing | ±5°C Temperature Control
Heat treatment furnace manufacturer,Jiangsu Hongtai Industrial Furnace Technology Co., Ltd
bell annealing furnace, coil annealing system, bright annealing oven
Products
Bell Type Furnaces for Annealing
Optimizing Material Ductility and Workability
Product Introduction

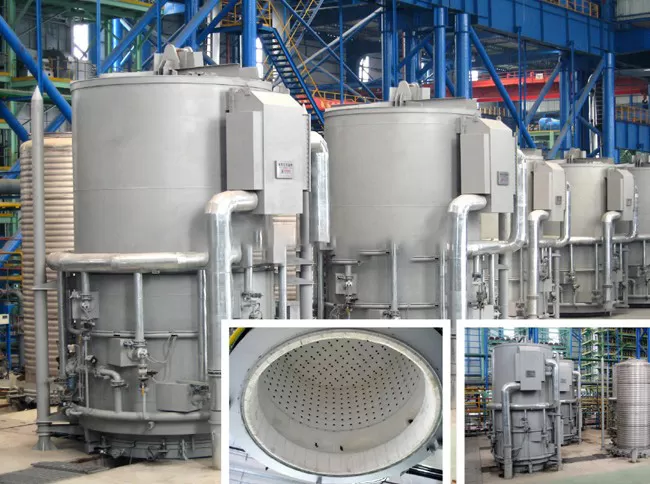

Our Bell Type Furnaces for Annealing are specifically designed to enhance the ductility, reduce hardness, and improve the workability of various metal components. Annealing is a critical heat treatment process that involves heating a material above its recrystallization temperature, holding it at that temperature for a specific duration, and then slowly cooling it. This process alters the microstructure of the material, making it softer, more ductile, and less brittle, which is essential for subsequent manufacturing processes like forming, machining, or drawing. These furnaces feature a unique bell-shaped movable heating chamber that is lowered over a stationary hearth, allowing for efficient loading and unloading of large or heavy components. With precise temperature control and uniform heating, our bell type annealing furnaces ensure consistent and predictable results, making them ideal for a wide range of industries requiring high-quality, malleable metal parts.
Key Advantages of Our Bell Type Furnaces for Annealing
- Enhanced Ductility & Workability: Precisely controls annealing to achieve desired softness, ductility, and formability.
- Stress Relief: Effectively relieves internal stresses induced during previous manufacturing processes, preventing cracking and warping.
- Superior Temperature Uniformity: Advanced heating systems ensure consistent temperatures throughout the chamber for uniform annealing results.
- Efficient Batch Processing: The bell-type design facilitates easy loading and unloading of large or heavy components, enhancing productivity.
- Versatile Application: Suitable for annealing a wide range of metals and alloys, including steel, copper, aluminum, and specialized alloys.
- Robust & Durable Construction: Built with high-quality materials for long operational life and minimal maintenance.
- Energy Efficiency: Optimized insulation and sealing minimize heat loss, contributing to lower operating costs.
Technical Specifications
| Parameter | Unit | Range/Value | Notes |
|---|---|---|---|
| Maximum Operating Temperature | °C | Up to 1100 | Customizable for specific applications |
| Working Dimensions (Diameter × Height) | mm | Customizable | Designed to customer specifications for various part sizes |
| Protective Atmosphere | - | Nitrogen, Hydrogen, Argon, Forming Gas | Selected based on material and process requirements |
| Temperature Uniformity | °C | ±5 (typical) | Ensures consistent heat treatment results |
| Heating Method | - | Electric Resistance, Gas-fired | Configurable based on energy source and preference |
| Cooling Method | - | Controlled Slow Cooling, Forced Cooling (optional) | Optimized for desired metallurgical properties |
Working Principle
Bell type furnaces for annealing operate by heating metal components to a specific temperature above their recrystallization point, holding them at that temperature for a defined period, and then slowly cooling them. The process begins with loading the workpiece onto a stationary furnace base. A bell-shaped heating chamber is then lowered over the base, creating a sealed retort. The chamber is purged with a protective atmosphere to prevent oxidation and decarburization during heating. During the soaking phase, the material's internal stresses are relieved, and its grain structure is refined, leading to increased ductility and reduced hardness. The slow cooling rate allows for the formation of a more stable and uniform microstructure. This controlled process ensures that the material achieves its desired mechanical properties, making it easier to form, machine, or draw in subsequent manufacturing steps. The bell-type design allows for efficient batch processing and precise control over the annealing cycle.
Process Flow
Material Loading
Workpiece is loaded onto the furnace base, and the bell-shaped chamber is lowered and sealed.
Heating & Soaking
Material is heated to annealing temperature and held for a specified time under protective atmosphere.
Controlled Cooling
Material is slowly cooled at a controlled rate to achieve desired metallurgical properties.
Unloading
Annealed material is removed from the furnace for further processing or inspection.
Solving Customer Pain Points
Brittle Materials & Poor Formability
Our annealing furnaces effectively reduce material hardness and increase ductility, making components easier to form, bend, and machine without cracking.
High Residual Stresses
The annealing process relieves internal stresses accumulated during manufacturing, preventing distortion and improving the long-term stability of parts.
Inconsistent Grain Structure
Superior temperature uniformity and controlled cooling ensure a refined and consistent grain structure, leading to predictable mechanical properties.
Surface Oxidation & Decarburization
The sealed, controlled atmosphere environment prevents surface oxidation and decarburization, preserving surface integrity and reducing post-treatment costs.
Inefficient Batch Processing
The bell-type design allows for efficient loading and unloading of large batches, significantly improving throughput and operational efficiency for annealing processes.
High Energy Consumption
Optimized insulation and heating systems ensure energy efficiency, reducing operational costs while maintaining high performance for annealing.
Customer Success Story
A major wire manufacturer adopted our Bell Type Annealing Furnace to improve the drawability of their high-carbon steel wires. They reported a 15% increase in production yield and a significant reduction in wire breakage during drawing, demonstrating the furnace's effectiveness in optimizing material properties.
Customization & Support
We offer extensive customization options for working dimensions, temperature range, and atmosphere type to perfectly match your specific annealing requirements. Our expert team provides comprehensive support from design and installation to training and after-sales service, ensuring seamless integration and optimal performance.
