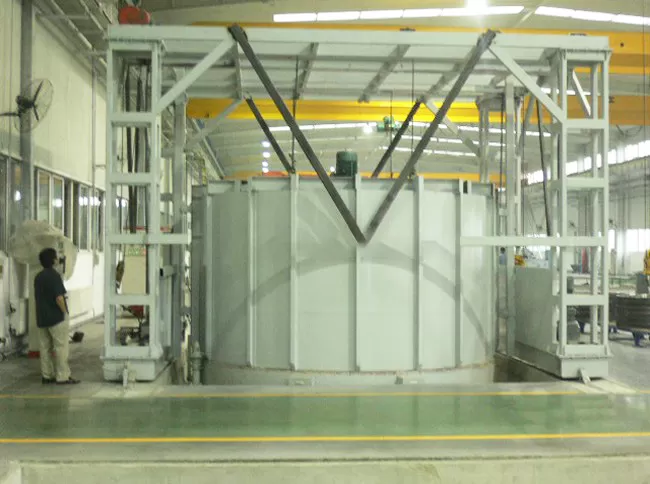

Bell Type Furnaces for Quenching

Product Introduction

Our Bell Type Furnaces for Quenching are engineered for high-performance heat treatment processes that demand precise temperature control and rapid cooling to achieve optimal material hardness, strength, and microstructure. These furnaces feature a unique bell-shaped movable heating chamber that is lowered over a stationary hearth, allowing for efficient loading and unloading of large or heavy components. The sealed environment ensures a controlled atmosphere during the heating and quenching cycles, preventing oxidation and decarburization. Ideal for a wide range of metals and alloys, our bell type quenching furnaces provide uniform heating and rapid, controlled quenching, making them indispensable for industries requiring superior material properties and consistent results.

Technical Specifications

Working Principle

Bell type furnaces for quenching operate on the principle of heating materials in a controlled environment followed by rapid and controlled cooling to achieve desired metallurgical properties. The process begins with loading the workpiece onto a stationary furnace base. A bell-shaped heating chamber is then lowered over the base, creating a sealed retort. The chamber is purged with a protective atmosphere to prevent oxidation and decarburization during heating. Once the desired temperature is reached and the material has soaked, the bell is quickly lifted, and the heated workpiece is rapidly transferred to a quenching medium (e.g., oil, water, or polymer) to achieve the desired hardness and microstructure. The rapid transfer minimizes heat loss and ensures effective quenching. After quenching, the material can be further processed, such as tempering, to achieve final properties. This design allows for efficient batch processing and precise control over the heat treatment cycle.

Process Flow

Solving Customer Pain Points
